Artifacts (Canvas)

Artifacts (also known as a “Canvas”) give the agent a persistent work surface separate from the chat. Use artifacts to hold substantive deliverables (documents, specs, code), while keeping chat replies brief and status‑oriented.

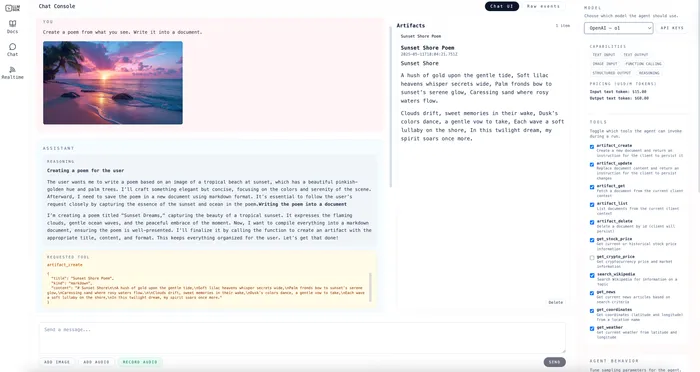

You can also check out the Console App to see how artifacts are integrated into a chat interface.

Console Chat UI

Implementation

Section titled “Implementation”

The examples below implement a simple artifacts workflow as one toolkit. Enabling the toolkit provides these operations together:

  • artifact_create: create a new document
  • artifact_update: replace content and print a color diff
  • artifact_get/artifact_list: fetch and list documents
  • artifact_delete: remove a document

Artifacts example

artifacts.ts
import {
  Agent,
  type AgentItem,
  type AgentTool,
  type Toolkit,
  type ToolkitSession,
} from "@hoangvvo/llm-agent";
import { zodTool } from "@hoangvvo/llm-agent/zod";
import { diffLines } from "diff";
import { z } from "zod";
import { getModel } from "./get-model.ts";


// Artifacts/Canvas feature example: the agent maintains named deliverables
// (documents/code/specs) separate from the chat through one toolkit that
// provides create, update, retrieve, list, and delete operations together.


type ArtifactKind = "markdown" | "text" | "code";


interface Artifact {
  id: string;
  title: string;
  kind: ArtifactKind;
  content: string;
  version: number;
  updated_at: string;
}


class InMemoryArtifactStore {
  #map = new Map<string, Artifact>();


  create(a: {
    id?: string;
    title: string;
    kind: ArtifactKind;
    content: string;
  }): Artifact {
    const id = (a.id?.trim() ? a.id : Math.random().toString(36).slice(2, 11))!;
    const now = new Date().toISOString();
    const artifact: Artifact = {
      id,
      title: a.title,
      kind: a.kind,
      content: a.content,
      version: 1,
      updated_at: now,
    };
    this.#map.set(id, artifact);
    return artifact;
  }


  update(a: { id: string; content: string }): Artifact {
    const existing = this.#map.get(a.id);
    if (!existing) throw new Error(`Artifact not found: ${a.id}`);
    const next: Artifact = {
      ...existing,
      content: a.content,
      version: existing.version + 1,
      updated_at: new Date().toISOString(),
    };
    this.#map.set(a.id, next);
    return next;
  }


  get(id: string): Artifact {
    const a = this.#map.get(id);
    if (!a) throw new Error(`Artifact not found: ${id}`);
    return a;
  }


  list(): Artifact[] {
    return [...this.#map.values()].sort((a, b) => a.id.localeCompare(b.id));
  }


  delete(id: string): { success: boolean } {
    const existed = this.#map.delete(id);
    return { success: existed };
  }
}


const store = new InMemoryArtifactStore();
const provider = process.env["PROVIDER"] ?? "openai";
const modelId = process.env["MODEL"] ?? "gpt-5.6-terra";
const model = getModel(provider, modelId);


const overviewPrompt = `Use artifacts (documents/canvases) for substantive deliverables like documents, plans, specs, or code. Keep chat replies brief and status-oriented; put the full content into an artifact via the tools. Always reference artifacts by id.`;


const rulesPrompt = `
- Prefer creating/updating artifacts instead of pasting large content into chat
- When asked to revise or extend prior work, read/update the relevant artifact
- Keep the chat response short: what changed, where it lives (artifact id), and next steps
`;


// Minimal colored diff rendering (single dep: diff)
const color = (s: string, code: number) => `\x1b[${code}m${s}\x1b[0m`;
const green = (s: string) => color(s, 32);
const red = (s: string) => color(s, 31);
const dim = (s: string) => color(s, 2);
function renderDiff(oldText: string, newText: string): string {
  const parts = diffLines(oldText, newText);
  const lines: string[] = [];
  for (const p of parts) {
    const valLines = p.value.replace(/\n$/, "").split("\n");
    for (const ln of valLines) {
      if (p.added) lines.push(green(`+ ${ln}`));
      else if (p.removed) lines.push(red(`- ${ln}`));
      else lines.push(dim(`  ${ln}`));
    }
  }
  return lines.join("\n");
}


const artifactTools: AgentTool<void>[] = [
  zodTool({
    name: "artifact_create",
    description:
      "Create a new artifact (document/canvas) and return the created artifact",
    parameters: z.object({
      title: z.string(),
      kind: z.enum(["markdown", "text", "code"]),
      content: z.string(),
    }),
    async execute(args) {
      console.log(
        `[artifacts.create] id=(auto) title=${args.title} kind=${args.kind}`,
      );
      const artifact = store.create(args);
      return {
        content: [{ type: "text", text: JSON.stringify({ artifact }) }],
        is_error: false,
      };
    },
  }),
  zodTool({
    name: "artifact_update",
    description: "Replace the content of an existing artifact and return it",
    parameters: z.object({ id: z.string(), content: z.string() }),
    async execute({ id, content }) {
      const before = store.get(id).content;
      console.log(`[artifacts.update] id=${id} len=${content.length}`);
      const artifact = store.update({ id, content });
      console.log(
        "\n=== Diff (old → new) ===\n" +
          renderDiff(before, artifact.content) +
          "\n========================\n",
      );
      return {
        content: [{ type: "text", text: JSON.stringify({ artifact }) }],
        is_error: false,
      };
    },
  }),
  zodTool({
    name: "artifact_get",
    description: "Fetch a single artifact by id",
    parameters: z.object({ id: z.string() }),
    async execute({ id }) {
      console.log(`[artifacts.get] id=${id}`);
      const artifact = store.get(id);
      return {
        content: [{ type: "text", text: JSON.stringify({ artifact }) }],
        is_error: false,
      };
    },
  }),
  zodTool({
    name: "artifact_list",
    description: "List all artifacts",
    parameters: z.object({}),
    async execute() {
      console.log(`[artifacts.list]`);
      const artifacts = store.list();
      return {
        content: [{ type: "text", text: JSON.stringify({ artifacts }) }],
        is_error: false,
      };
    },
  }),
  zodTool({
    name: "artifact_delete",
    description: "Delete an artifact by id",
    parameters: z.object({ id: z.string() }),
    async execute({ id }) {
      console.log(`[artifacts.delete] id=${id}`);
      const result = store.delete(id);
      return {
        content: [{ type: "text", text: JSON.stringify(result) }],
        is_error: false,
      };
    },
  }),
];


class ArtifactsToolkitSession implements ToolkitSession<void> {
  getSystemPrompt(): string {
    return `${overviewPrompt}\n${rulesPrompt}`;
  }


  getTools(): AgentTool<void>[] {
    return artifactTools;
  }


  async close(): Promise<void> {
    // No resources to release.
  }
}


class ArtifactsToolkit implements Toolkit<void> {
  async createSession(): Promise<ToolkitSession<void>> {
    return new ArtifactsToolkitSession();
  }
}


const artifactsAgent = new Agent<void>({
  name: "artifacts",
  model,
  toolkits: [new ArtifactsToolkit()],
});


// Demo: ask the agent to create an artifact, then revise it.
const items1: AgentItem[] = [
  {
    type: "message",
    role: "user",
    content: [
      {
        type: "text",
        text: `We need a product requirements document for a new Todo app.
Please draft it in markdown with sections: Overview, Goals, Non-Goals, Requirements.
Keep your chat reply short and save the full document to a separate document we can keep iterating on.`,
      },
    ],
  },
];


const res1 = await artifactsAgent.run({ context: undefined, input: items1 });
console.dir(res1.content, { depth: null });
console.log("Artifacts after creation:");
console.dir(store.list(), { depth: null });


const items2: AgentItem[] = [
  {
    type: "message",
    role: "user",
    content: [
      {
        type: "text",
        text: `Please revise the document: expand the Goals section with 3 concrete goals and add a Milestones section. Keep your chat reply brief.`,
      },
    ],
  },
];


const res2 = await artifactsAgent.run({ context: undefined, input: items2 });
console.dir(res2.content, { depth: null });
console.log("Artifacts after update:");
console.dir(store.list(), { depth: null });
